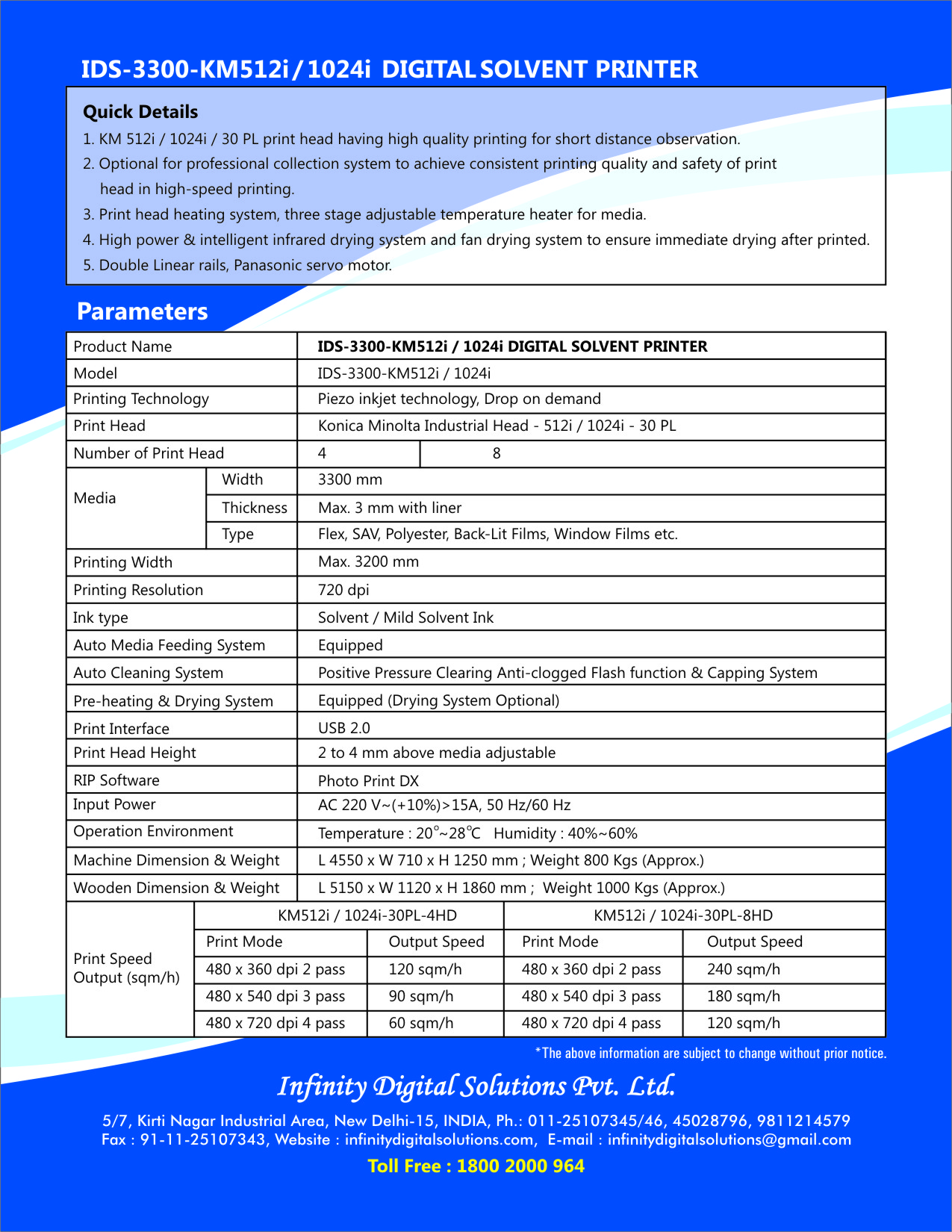

Product Model- Revotech KM512i-30PL-4H
Quick Details:
- KM 512i-30PL Print Heads having High Quality Printing for short distance observation.
- Optional for professional collection System to achieve consistent printing quality and safety of print head in High-Speed Printing.
- Print head heating system, three stage adjustable temperature heater for media.
- High power & intelligent infrared drying system and fan drying system to ensure immediate drying after printing.
- Double Liner rails, Panasonic servo motor.
Specifications:
KM512i - 4HD KM512i - 8HD
|
Output (sqm/hr) |
Print Mode |
Output speed |
Print mode |
Output Speed |
|
|
480x360 dpi 2 pass |
120 sqm/h |
480x360 dpi 2 pass |
240 sqm/h |
|
|
480x540 dpi 3 pass |
90 sqm/h |
480x540 dpi 3 pass |
180 sqm/h |
|
|
480x720 dpi 4 pass |
60 sqm/h |
480x720 dpi 4 pass |
120 sqm/h |
|
Ink |
Type |
Solvent /Mild Solvent Ink |
|
Color |
4 Colors (C, M, Y, K) |
|
|
Media |
Width |
3300 mm |
|
Thickness |
Max. 3 mm with liner |
|
|
Type |
Flex,SAV,Polyster,Black-lit Films, Window Films etc. |
|
Auto Media Feeding System |
Equipped |
|
Maximum Print Width |
3200 mm (10.5 ft) |
|
Auto Cleaning System |
Positive Pressure Clearing Anti-clogged Flash function & Capping system |
|
Pre-heating & drying System |
Equipped (Drying system optional) |
|
Print Interface |
USB 2.0 |
|
Print head height |
2 to 4 mm above media adjustable |
|
RIP Software |
Photo Print DX |
|
Input Power |
AC 220V~ (+10%) >15A, 50 Hz/60Hz |
|
Operation Environment |
Temperature : 20?~28?C ; Humidity : 40 % ~ 60% |
|
Machine Dimension & Weight |
L 4550 x W 710 x H 1250 mm ; Weight 900 KGS (Approx.) |
|
Wooden box Dimension & Weight |
L 5150 x W 1120 x H 1860 mm ; Gross Weight 1000 KGS (Approx.) |
